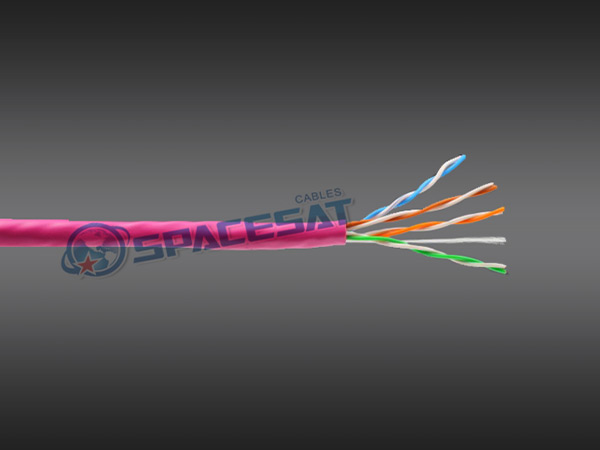

UTP CAT5E-Zhejiang Fanlong Cable Co., Ltd.

Performance parameters (Exceeds TIA/EIA-568-A and Cat5 Standard
Frequency	Attenuation		NEXT		PSNEXT		ELFEXT		PSELFEXT		RL
(MHz）	(dB/100m)		(dB)		(dB)		(dB)		(dB)		(dB)
	Typical	Maximum	Typical	Maximum	Typical	Maximum	Typical	Maximum	Typical	Maximum	Typical	Maximum
0.77	1.80	1.60	67.00	82.60	64.00	79.20	66.00	82.30	63.00	80.40
1.00	2.00	1.90	65.30	83.20	62.30	80.40	63.80	79.60	60.80	77.40	20.00	24.70
4.00	4.10	3.80	56.30	69.30	53.30	67.70	51.70	64.00	48.70	60.40	23.00	29.60
8.00	5.80	5.30	51.80	67.80	48.80	64.00	45.70	57.10	42.70	56.20	24.50	31.90
10.00	6.50	6.00	50.30	63.60	47.30	59.70	43.80	54.80	40.80	52.70	25.00	33.00
16.00	8.20	7.70	47.30	58.70	44.30	55.50	39.70	54.50	36.70	51.20	25.00	33.20
20.00	9.30	8.60	45.80	58.50	42.80	55.30	37.70	49.70	34.70	47.30	25.00	31.60
25.00	10.40	9.70	44.30	54.20	41.30	52.90	35.80	45.20	32.80	44.80	24.30	32.80
31.25	11.80	10.90	42.90	57.00	39.90	54.50	33.90	44.50	30.90	42.00	23.60	33.20
62.50	17.10	15.70	38.40	52.50	35.40	50.10	27.80	37.20	24.80	34.90	21.50	31.00
100.00	22.00	20.10	35.30	49.20	32.30	46.20	23.80	32.30	20.80	30.10	20.10	29.30

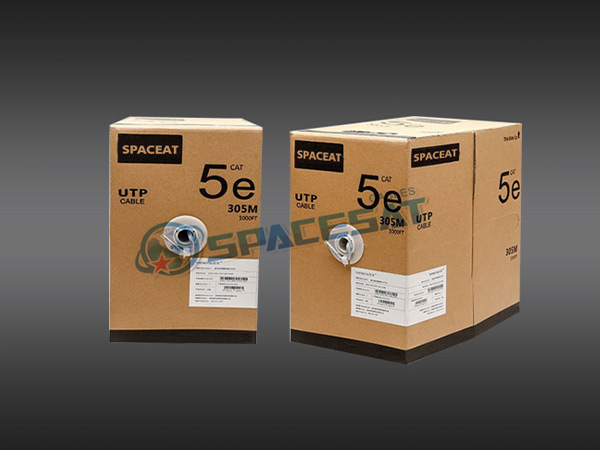

UTP CAT5E
