| Physical Dimensions | |||

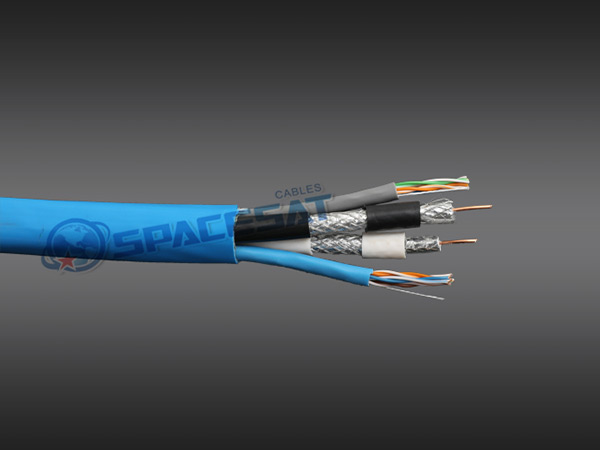

| Component | 2*RG6 | 2*CAT5E | |
| Conductor | Material | CCS/BC | BC |
| Dia.(mm) | 1.02±0.01 | 0.50±0.01 | |
| Dielectric | Material | Foam PE | HDPE |
| Dia.(mm) | 4.57±0.01 | 0.9±0.03 | |
| Shield | Material | AL Foil+AL/CU braid | NONE |
| Coverage | 40%-95% | NONE | |
| Jacket | Material | PVC/PE | PVC |
| Dia.(mm) | 7.54±0.01 | 5.0±0.01 | |
| Electrical Characteristics | |||
| Impedance(Ω) | 75±3 | 100±15 | |
| Velocity of Propagation | 83% | 69% | |
| Capacitance(pF/m) | 53.1 | 5.6 | |
| Attenuation [@ 68° F. (20° C)] | |||
| RG6 | CAT5E | ||
| Frequency(MHz) | Attenuation(dB/100m) | Frequency(MHz) | Attenuation(dB/100m) |
| 5 | 2.20 | 1.00 | 2.00 |
| 55 | 5.25 | 4.00 | 4.10 |
| 211 | 9.42 | 10.00 | 6.50 |
| 300 | 11.25 | 20.00 | 9.30 |
| 400 | 13.12 | 25.00 | 10.40 |
| 550 | 15.45 | 31.25 | 11.70 |
| 750 | 18.34 | 62.50 | 17.00 |
| 1000 | 21.46 | 100.00 | 20.10 |
