Physical Dimensions |
||
|
Component |

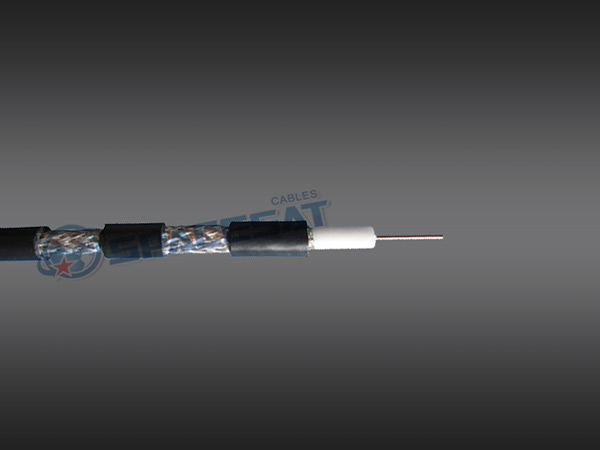

QUAD-Shield |
|
|
Conductor |
Material |
CCS/BC |
|
Dia.(mm) |
0.81±0.01 |
|
|
Dielectric |
Material |
Foam PE |
|
Dia.(mm) |
3.66±0.01 |
|
|
Shield |
Material |
(AL Foil+Albraid)*2 |
|
Coverage |
40%-95% |
|
|
Jacket |
Material |
PVC/PE |
|
Dia.(mm) |
6.70±0.01 |
|
|
Electrical Characteristics |
||
|
Impedance(Ω) |
75±3 |
|
|
Velocity of Propagation |
85% |
|
|
Capacitance(pF/m) |
50 |
|
|
Structural Return Loss(≥dB) |
20 |
|
|
Attenuation [@ 68° F. (20° C)] |
||
|
Frequency(MHz) |
Maximum(dB/100m) |
|
|
5 |
2.82 |
|
|
55 |
6.73 |
|
|
187 |
11.81 |
|
|
300 |
14.60 |
|
|
450 |
17.72 |
|
|
600 |
20.34 |
|
|
750 |
22.87 |
|
|
865 |
24.67 |
|
|
1000 |
26.64 |
|
