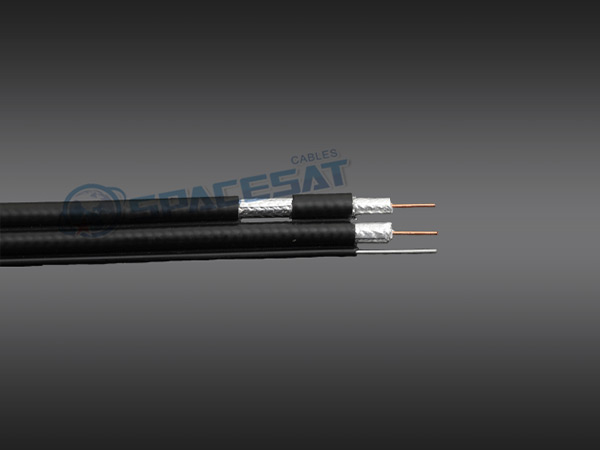

RG6 DUAL with Mess Coaxial Cable

Contact Us

PREV：RG6 with Connector Coaxial Cable NEXT：RG6 DUAL coaxial cable

Descripton
Message

Physical Dimensions

Component		Standard Shield	Tri-Shield		Quad-Shield
Conductor	Material	CCS/BC	CCS/BC		CCS/BC
	Dia.(mm)	1.02±0.01	1.02±0.01		1.02±0.01
Dielectric	Material	Foam PE	Foam PE		Foam PE
	Dia. (mm)	4.57±0.10	4.57±0.10		4.57±0.10
Shield	Material	Al Foil + Al Braid	Al Foil + Al Braid + Al Foil		(Al Foil + Al Braid)*2
	Coverage	40%-95%	40%-95%		40%-95%
Jacket	Material	PVC/PE	PVC/PE		PVC/PE
	Dia. (mm)	6.90±0.10	7.06±0.10		7.54±0.10
Messenger	Material	Galvanized Steel	Galvanized Steel		Galvanized Steel
	Dia. (mm)	1.30±0.01	1.30±0.01		1.30±0.01
		1.83±0.01	1.83±0.01		1.83±0.01

Mechanical Characteristics
Minimum Breaking Strength of Messenger				1.30mm 82kgf
				1.83mm 166kgf

Electrical Characteristics
Impedance(Q)				75±3
Velocity of Propagation				83%
Capacitance(pF/m)				53.1
Structural Return Loss(≥dB)				20
Attenuation [@ 68。F. (20。C)]
Frequency(MHz)				Maximum(dB/100m)
5				2.20
55				5.25
211				9.42
300				11.25
400				13.12
550				15.45
750				18.34
1000				21.46
1450				26.20
1800				28.90
2250				32.80
3000				39.00
