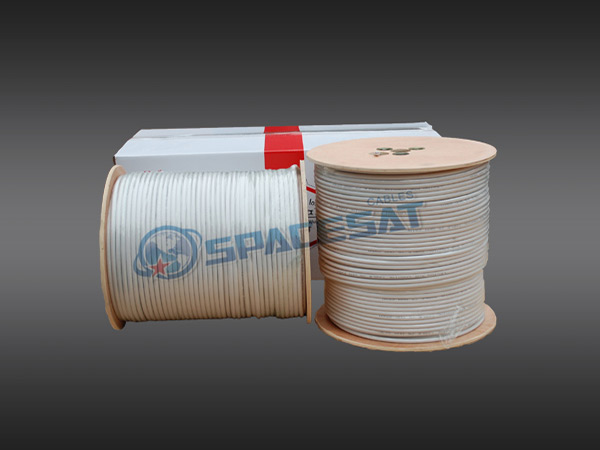

RG6 Standard Coaxial Cable

Contact Us

PREV：RG6 Quad Shield Coaxial Cable NEXT：No next product

Descripton
Message

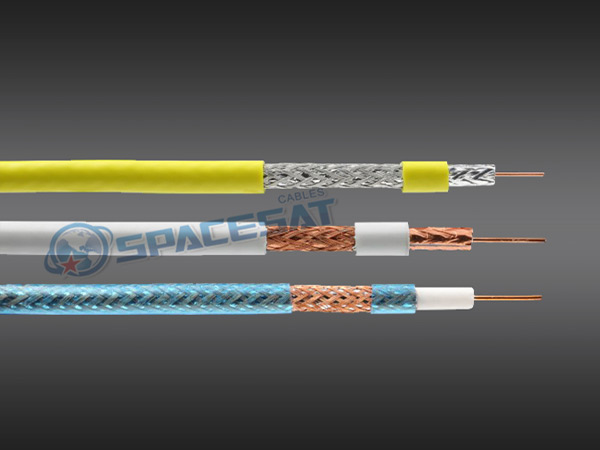

Physical Dimensions
Component		Standard Shield	Tri-Shield	Quad-Shield
Conductor	Material	CCS/BC	CCS/BC	CCS/BC
Conductor	Dia.(mm)	1.02±0.01	1.02±0.01	1.02±0.01
Dielectric	Material	Foam PE	Foam PE	Foam PE
Dielectric	Dia. (mm)	4.57±0.10	4.57±0.10	4.57±0.10
Shield	Material	Al Foil + Al Braid	Al Foil + Al Braid + Al Foil	(Al Foil + Al Braid)*2
Shield	Coverage	40%-95%	40%-95%	40%-95%
Jacket	Material	PVC/PE	PVC/PE	PVC/PE
Jacket	Dia. (mm)	6.90±0.10	7.06±0.10	7.54±0.10
Messenger	Material	Galvanized Steel	Galvanized Steel	Galvanized Steel
	Dia. (mm)	1.30±0.01	1.30±0.01	1.30±0.01
		1.83±0.01	1.83±0.01	1.83±0.01

Mechanical Characteristics
Minimum Breaking Strength of Messenger
1.30mm 82kgf
1.83mm 166kgf

Electrical Characteristics
Impedance(Q)	75±3
Velocity of Propagation	83%
Capacitance(pF/m)	53.1
Structural Return Loss(≧adB)	20
Attenuation [@ 68。F. (20。C)]
Frequency(MHz)	Maximum(dB/100m)
5	2.20
55	5.25
211	9.42
300	11.25
400	13.12
550	15.45
750	18.34
1000	21.46
1450	26.20
1800	28.90
2250	32.80
