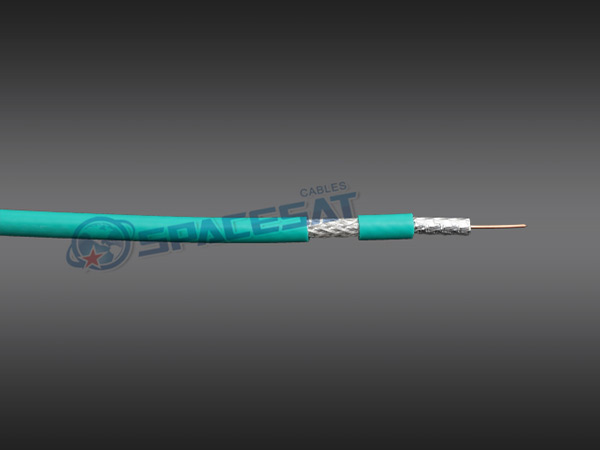

| Physical Dimensions | ||
| Component | Standard Shield | |
| Conductor | Material | CCS/BC |
| Dia.(mm) | 1.02±0.01 | |
| Dielectric | Material | Foam PE |
| Dia.(mm) | 4.57±0.01 | |
| Shield | Material | AL Foil+AL/CU braid+jelly |
| Coverage | 40%-95% | |
| Jacket | Material | PVC/PE |
| Dia.(mm) | 6.90±0.01 | |
| Electrical Characteristics | |
| Impedance(Ω) | 75±3 |
| Velocity of Propagation | 83% |
| Capacitance(pF/m) | 53.1 |
| Structural Return Loss(≥dB) | 20 |
| Attenuation [@ 68° F. (20° C)] | |
| Frequency(MHz) | Maximum(dB/100m) |
| 5 | 2.20 |
| 55 | 5.25 |
| 211 | 9.42 |
| 300 | 11.25 |
| 400 | 13.12 |
| 550 | 15.45 |
| 750 | 18.34 |
| 1000 | 21.46 |
| 1450 | 26.20 |
| 1800 | 28.90 |
| 2250 | 32.80 |
| 3000 | 39.00 |
